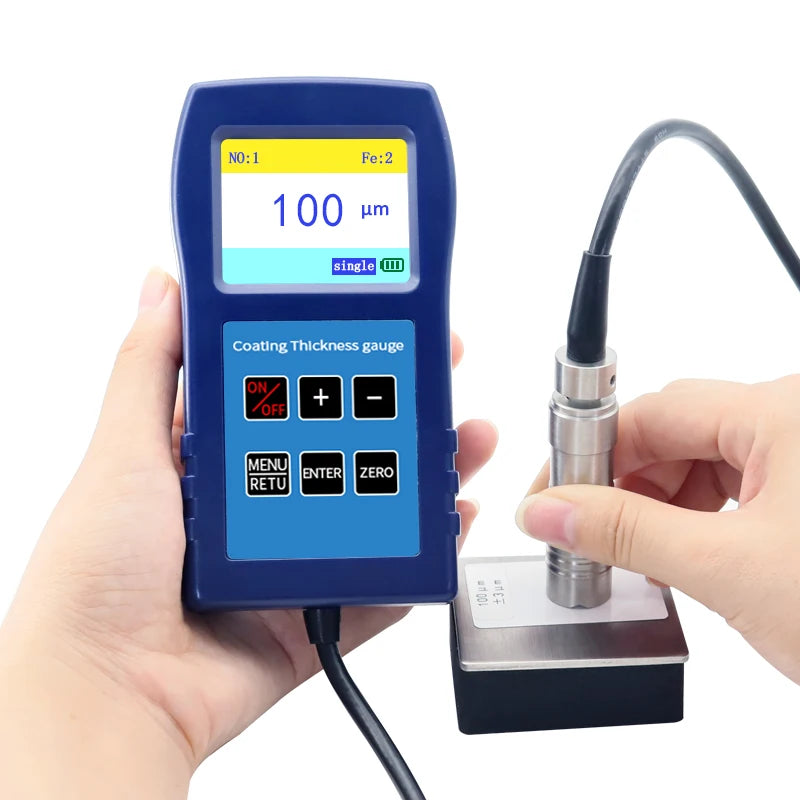

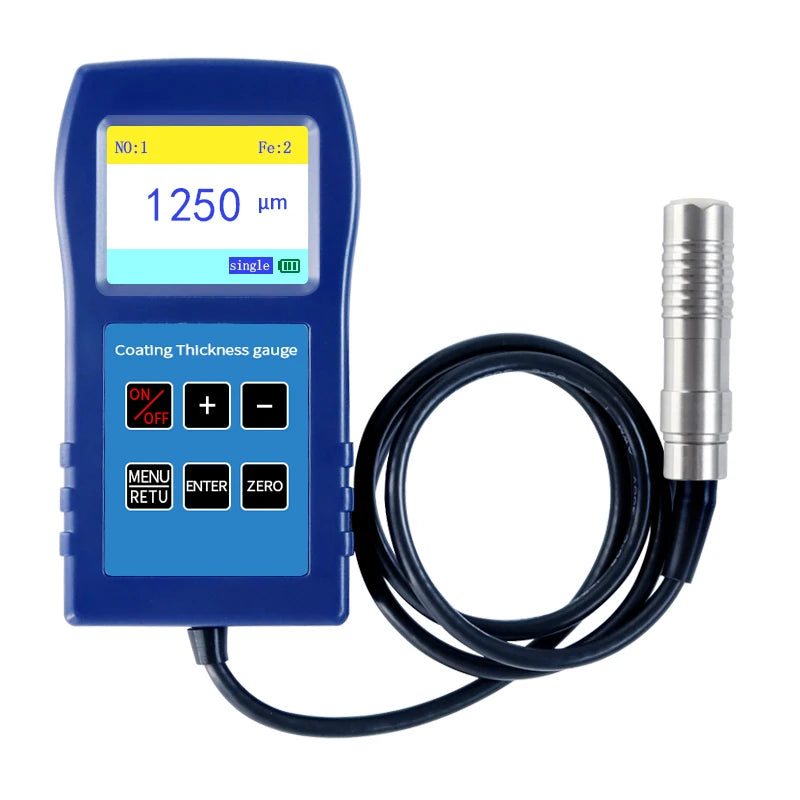

DR280 Magnetic Eddy Current Thickness Gauge Paint Layer Film Thickness Gauge Dual Purpose Paint Coating Thickness Gauge
DR280 Magnetic Eddy Current Thickness Gauge Paint Layer Film Thickness Gauge Dual Purpose Paint Coating Thickness Gauge
Regular price
$613.99 USD
Regular price
Sale price
$613.99 USD
Quantity
Couldn't load pickup availability
If you have any questions, Please contact our customer service
If you are interested in it and want to get a discount, please contact us :
WhatsApp: +86 18774005168
Email: 18774005168@163.com
Product Overview
Product Overview

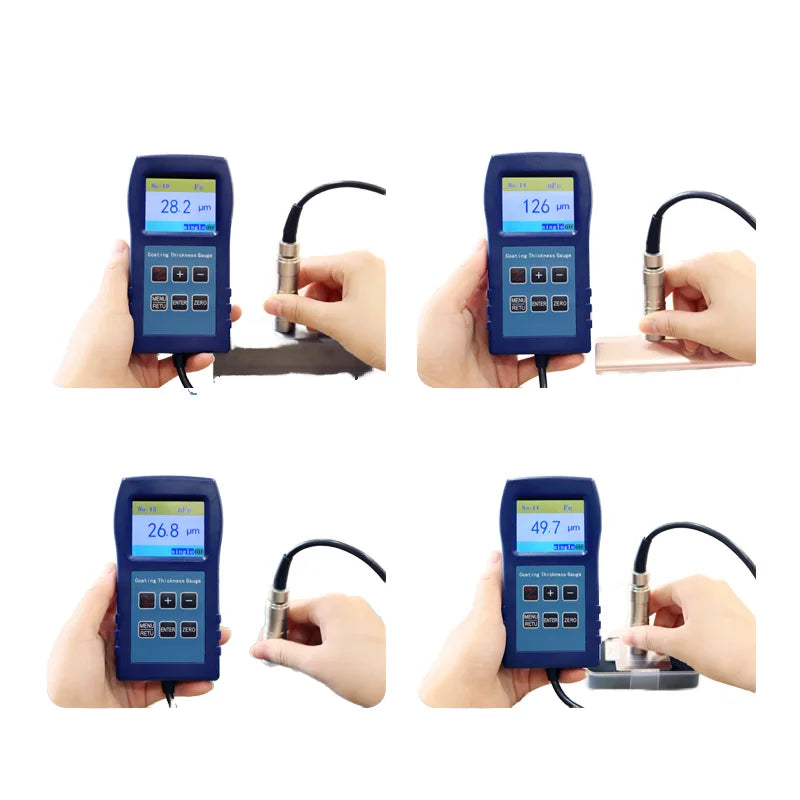

Coating Thickness Gauge

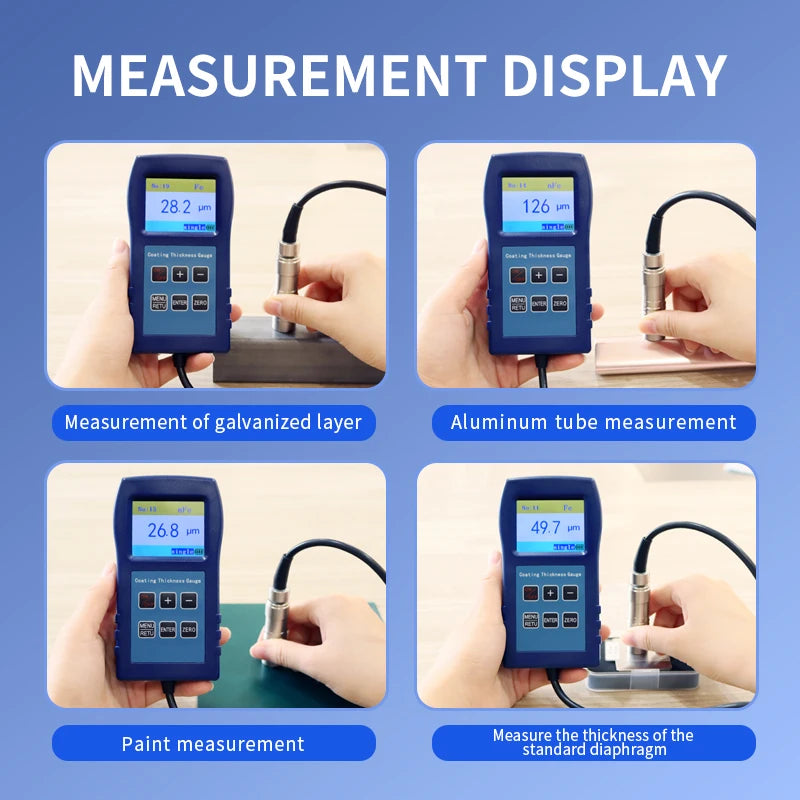

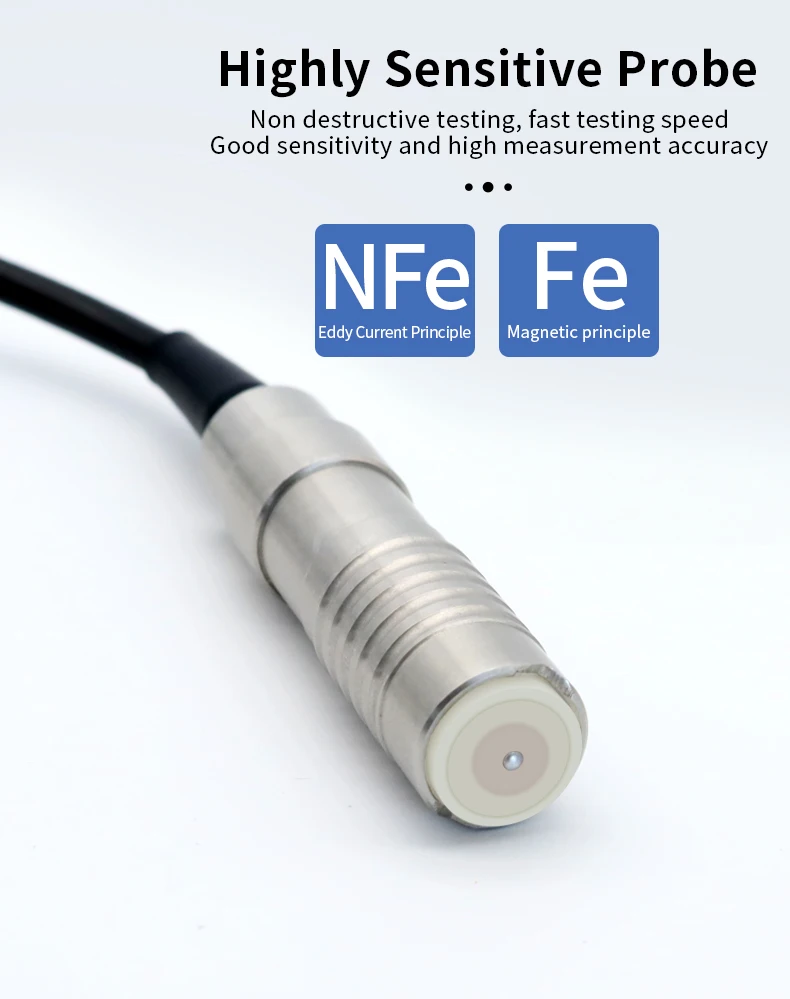

DR280 Coating thickness gauge is a professional non-destructive testing instrument for measuring the thickness of coating on the surface of metal materials and anti-corrosion and fireproof coatings. Different measuring methods are used according to different metal substrates. A. Magnetic thickness measurement method can be used to measure the thickness of non-magnetic coating on magnetic metal substrate (such as steel and iron) without damage (such as zinc plating, chromium, Gu, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, coating, anti-corrosion and fireproof coating, etc.). B.Eddy current thickness measurement method can measure the thickness of non-conductive coating on non-magnetic metal substrate (such as aluminum, copper, stainless steel) non destructively (such as paint, powder, plastic, rubber, enamel, enamel, electrophoresis, etc.). Application: Widely used in coating industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other testing fields.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Measuring range
|
0-1250μm
|
Minimum contact area
|
Φ16mm
|
Measurement accuracy
|
±(1%-3%)H+1.5μm
|
Thinnest substrate
|
0.4mm
|
Minimum Curvature
|
Convex 5mm; concave 25mm
|
Resolving power
|
0.1μm /1μm
|
power source
|
three alkaline batteries
|
Size
|
130L×70W×25Hmm
|
Display
|
2.3 inch color screen
|
Weight
|
100g
|
Using environment
|
0℃-60℃and 20%RH—90%RH,not strong magnetic place.
|








Product packaging
Product packaging

Company Profile
Company Profile

Certifications
Certifications

FAQ
FAQ
Q1Are you a factory or trading company?
A1We are a factory
Q1MOQ?
A1We don't have MOQ limit, you can order any quantity you want. If you need scales with your specification, logo, packing,etc,please negotiate with us.
Q1Can I add my logo on the machine?
A1Yes,OEM is available for us.But you should send us the Trademark authorization letter.
Q1Do you have inspection procedures for these machine?
A1100% self-inspection before packing
Q1Payment Method?
A1L/C at sight, T/T, Western Union and Paypal are all available. 30% deposit T/T in advance, rest against the Shipping Doc. 100% T/T in advance for sample order.
Q1Shipping?
A1
a. International Experess: DHL/TNT/FEDEX/UPS (For sample) b. By air (For sample orders.) c. By sea (15-45days), port of loading: Guang zhou d. By domestic logistics to your forwarder. (2-3days)
