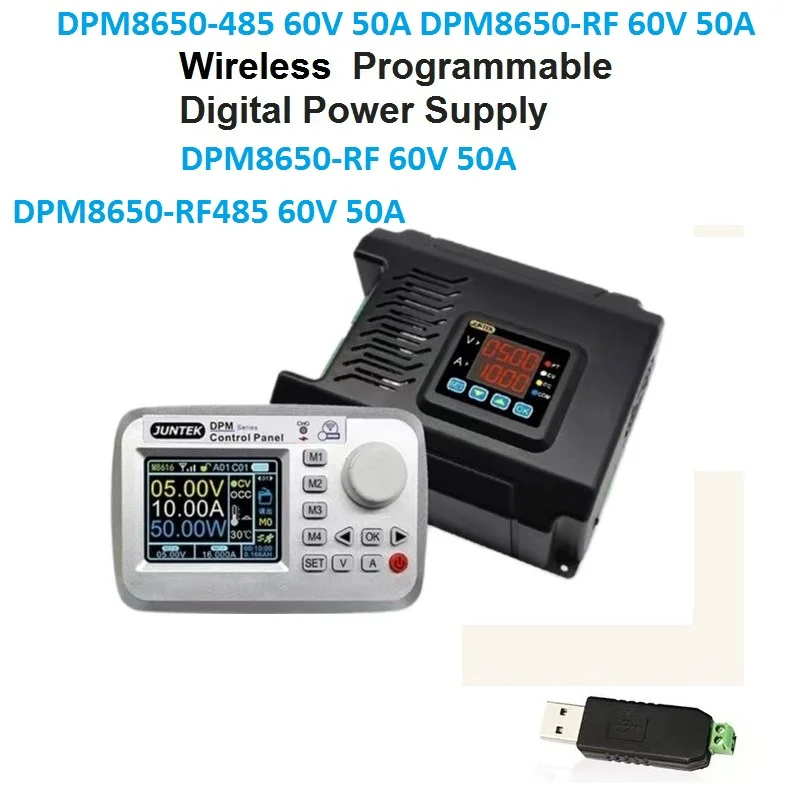

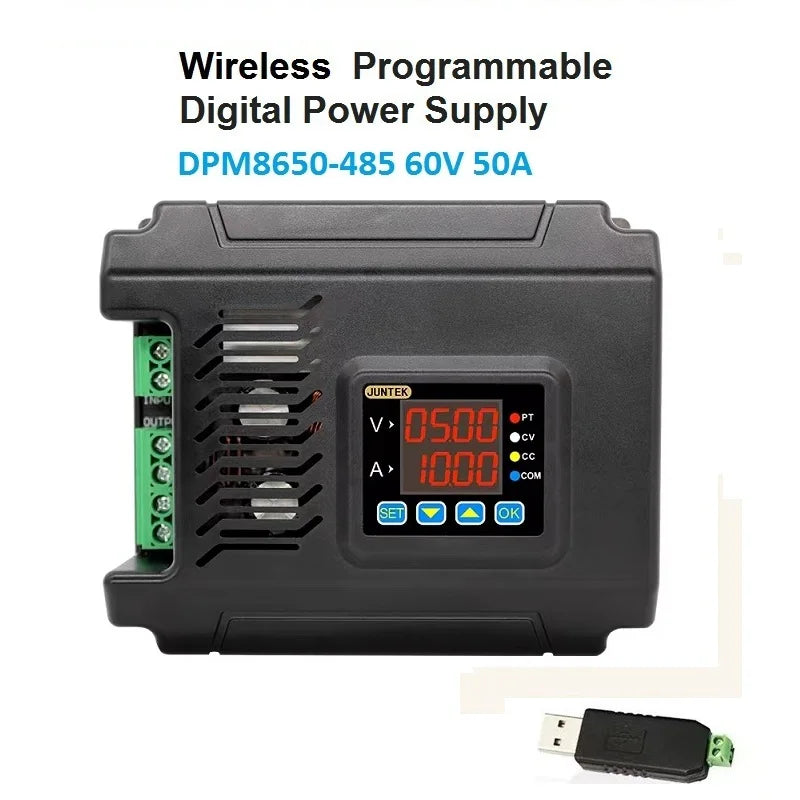

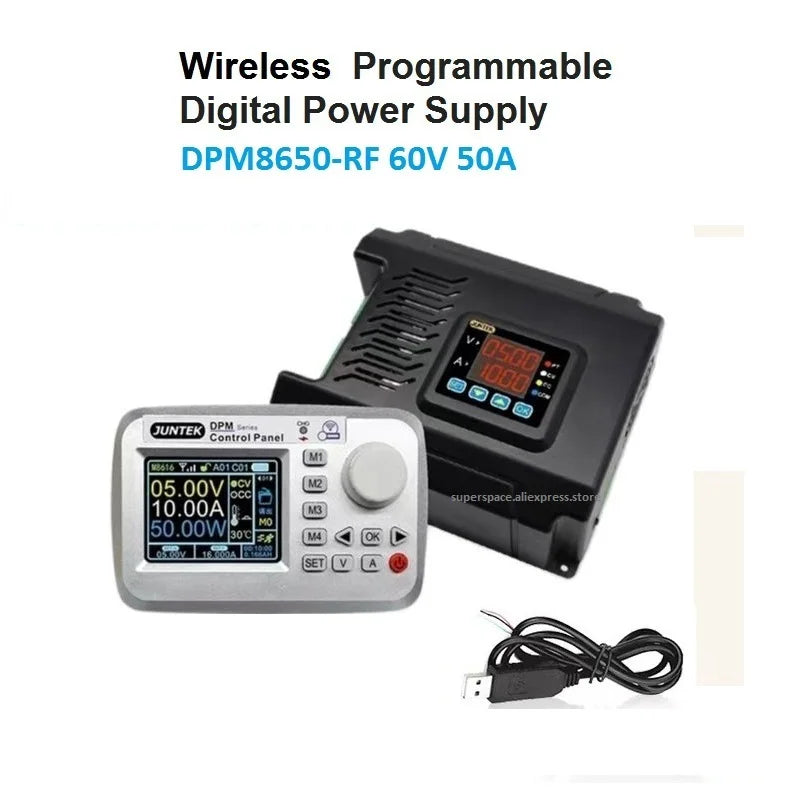

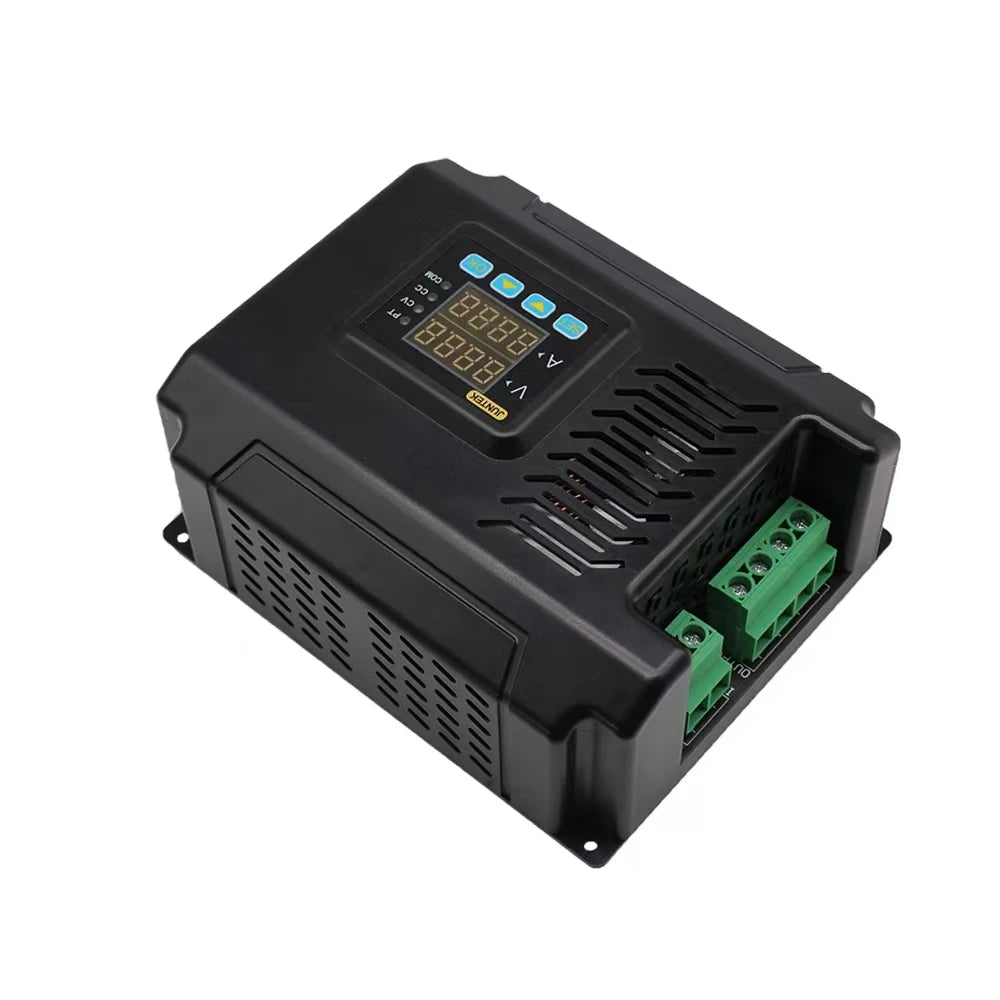

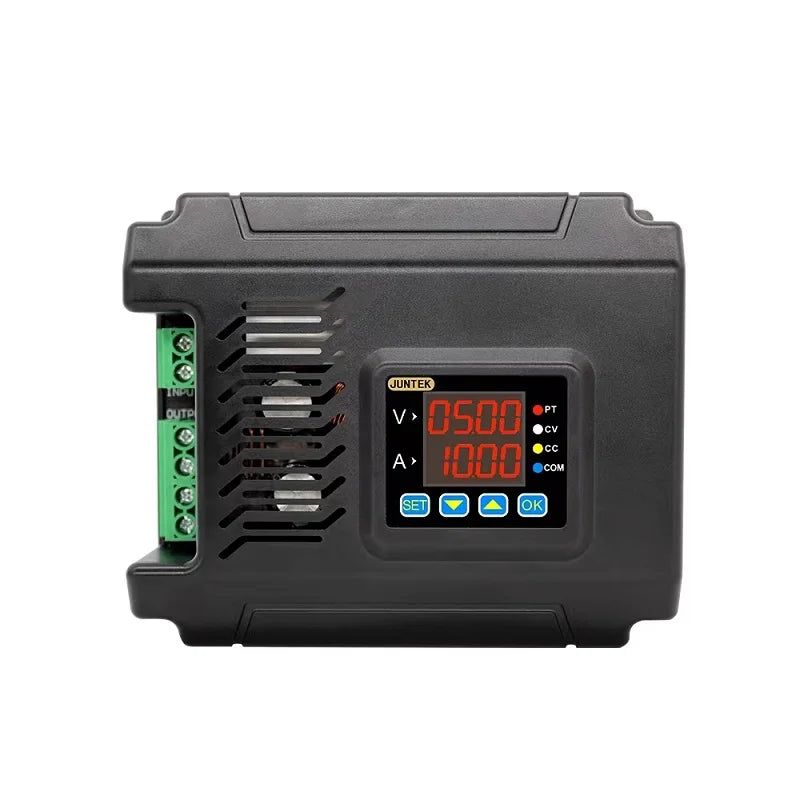

DPM8650 485RF DPM8650 60V 50A Remote Control Voltmeter Programmable Power Supply Solar Charging Constant Current Converter TTL

$78.99 USD

Sale Sold out

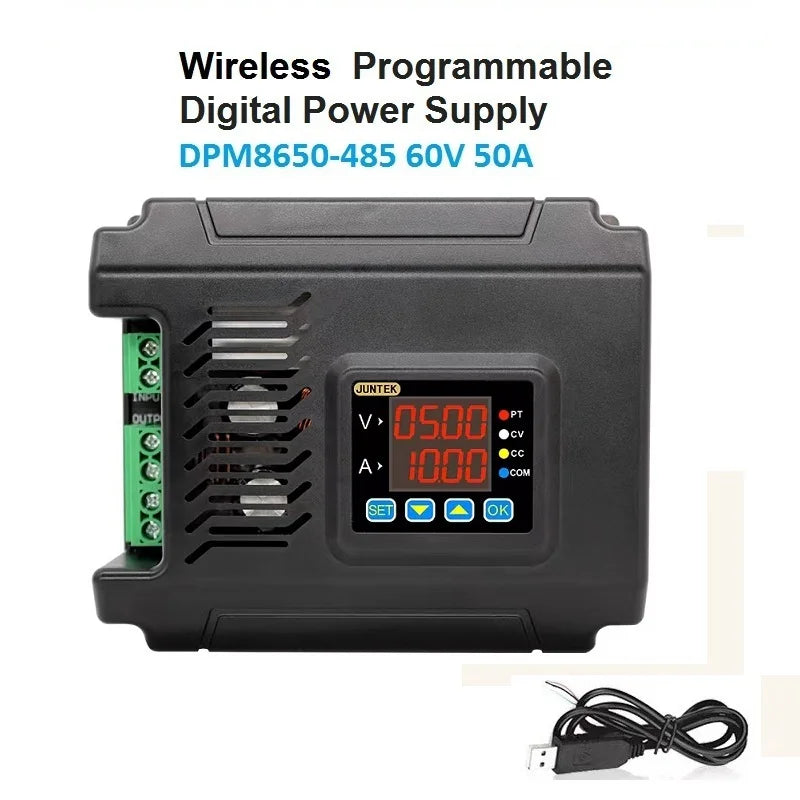

DPM8650-485RF 60V 50A Remote Control Voltmeter Programmable Power Supply Solar Charging Constant Current Converter 485 Communication Overload Protection

Product information download link:

User Manual	http://68.168.132.244/DPM8600_EN_manual.pdf
PC software/Communication protocol	http://68.168.132.244/DPM8600_Setup.zip
WhatsAPP Technology Group	https://chat.whatsapp.com/CBXHIjh1CdpE5OBwUfchLi

Introduction:

DPM8600 series programmable DC power supply can digitally display the output voltage,current,temperature and other parameters. They have two different output status of constant voltage and constant current. They are especially suitable for use in factory equipment power supply, product aging and debugging, solar charging, LED lamp bead driving and battery charging and discharging.

Features:

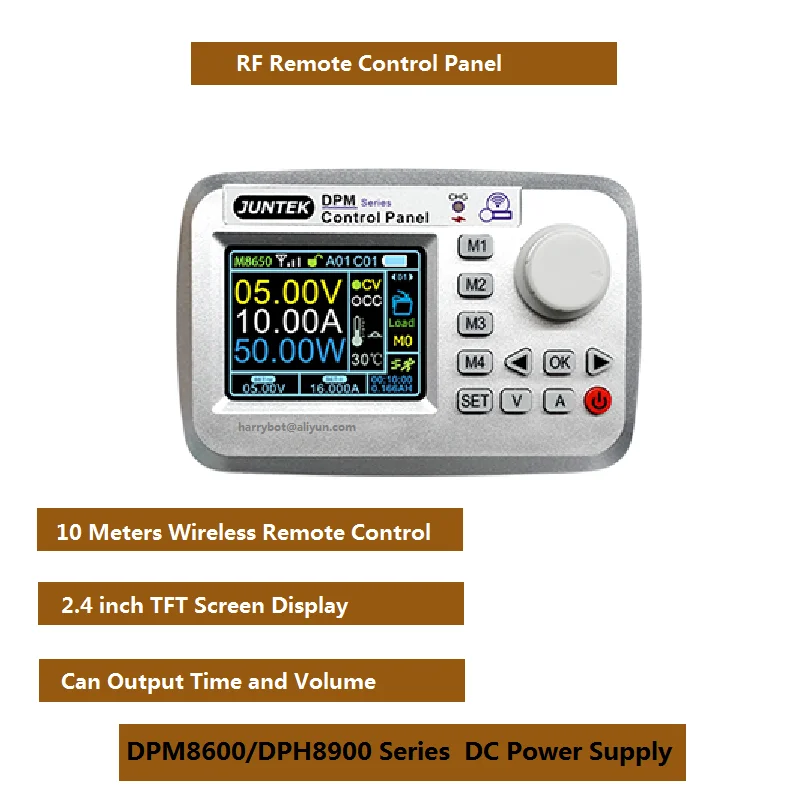

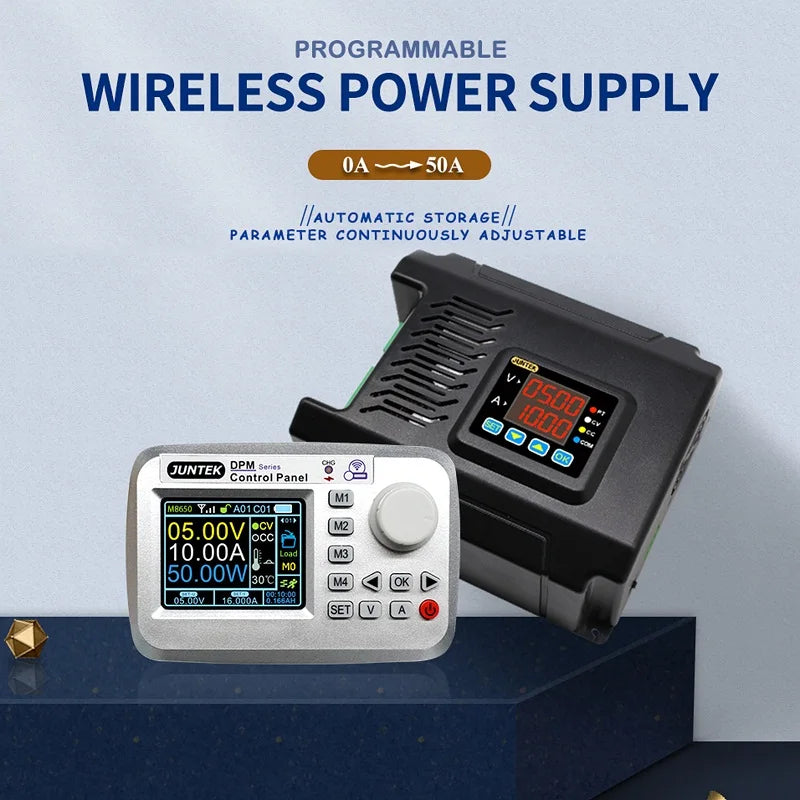

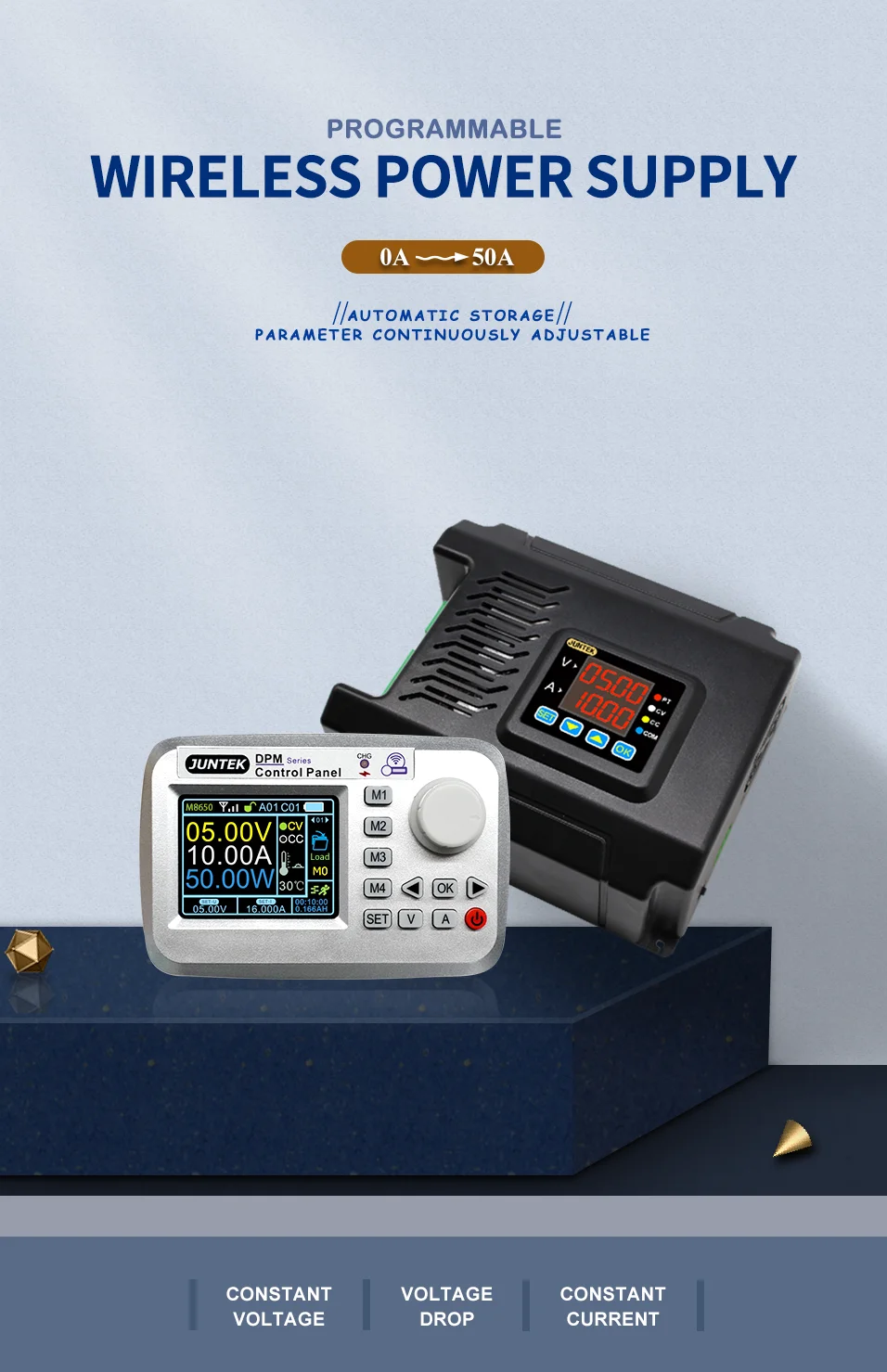

►There are three ways to control the power supply:First, the button on the power panel can adjust the voltage and current; Second,the computer software communication regulates the voltage and current; Third, the remote control controls thepower supply wirelessly.

►The remote control has an effective control distance of 0-10 meters. A remote controller can control 30*99 power supplies by changing the communication channel and address.

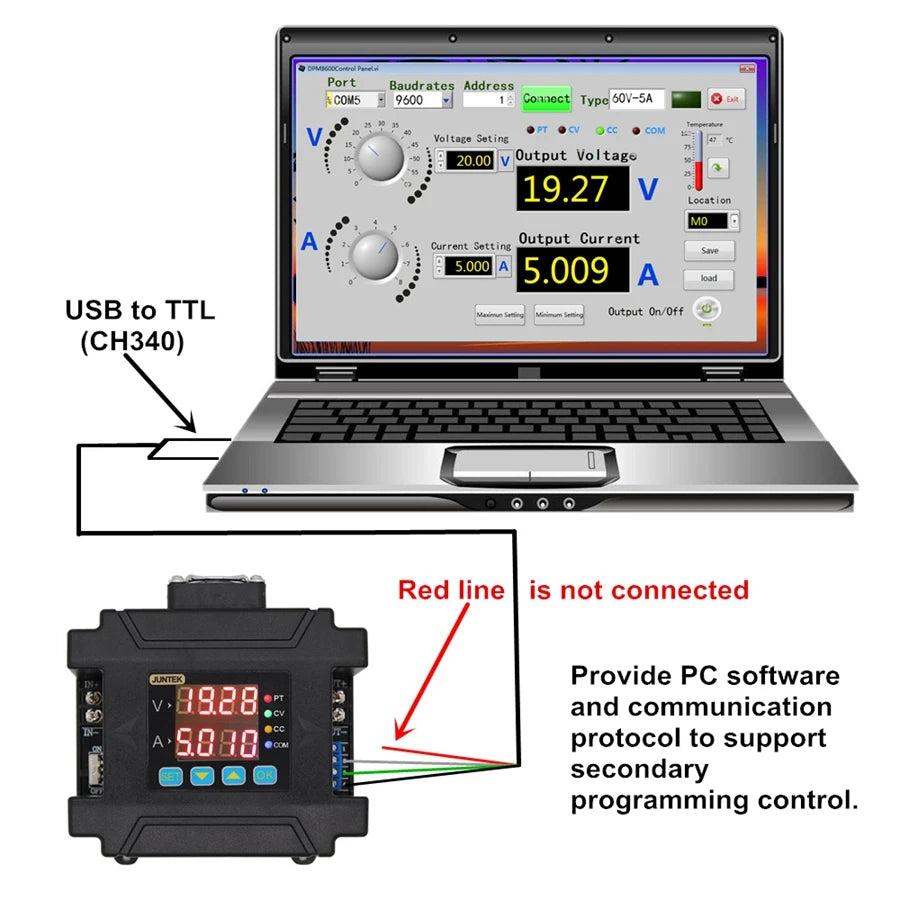

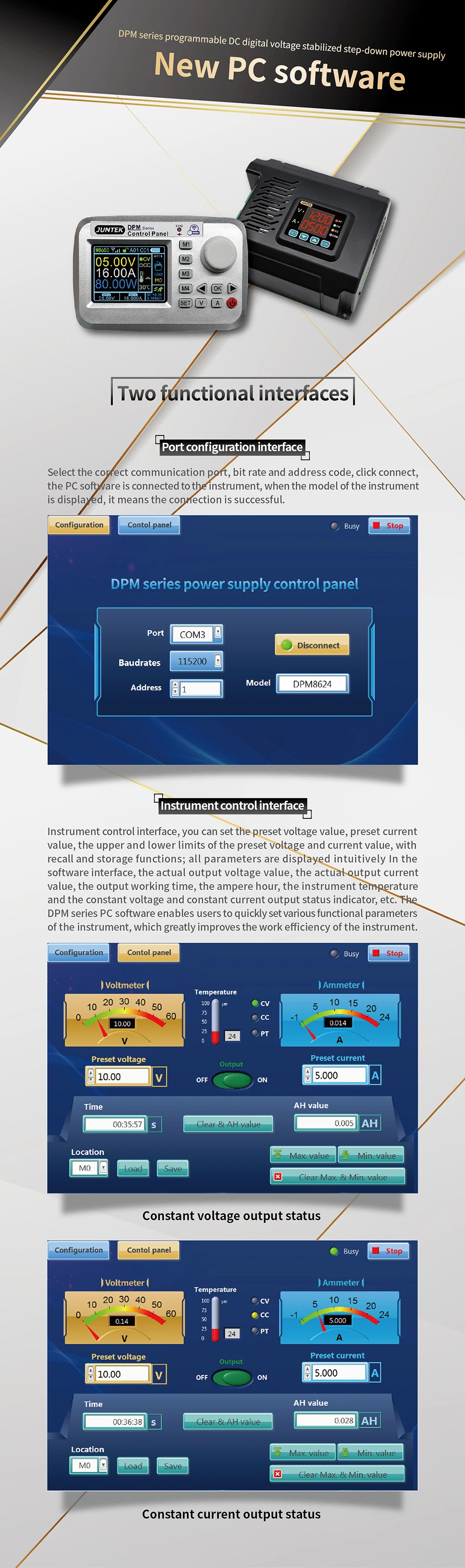

►FreePCsoftware and communication protocol, the communication protocol is divided into "SIMPLE" and "MODBUS", which can be set in the power menu.

►The power supply is based on the BUCK architecture, and it can still work stably with the operating frequency up to 150KHz and the minimum 0.5V voltage difference.

►Input DC voltage 10-75V, the power supply can be powered by AC-DC switching power supply ,solar panels, wind turbines or battery-powered equipment.

►The maximum and minimum voltage and current can be set to protect the load from damage due to over-voltage.

►Equippedwith a temperature-controlledfan, intelligently adjusts the fan speed, and automatically cuts off the output after over-temperature.

►The voltage regulation response is very fast.

►The parameters are automatically saved when the power is turned off, and there are 10 groups of storage locations (M0~M9), which can be saved and recalled at any time.

Specification:

Model	DPM-8605 DPM8605-485	DPM-8608 DPM8608-485	DPM-8616 DPM8616-485	DPM-8624 DPM8624-485	DPM-8650 DPM8650-485
Input voltage	10-75V
Output voltage	0-60V
Output Current	0-5A	0-8A	0-16A	0-24A	0-50A
Output power	0-300W	0-480W	0-960W	0-1440W	0-3000W
Voltage resolution	10mA
Current resolution	1mA		10mA
Output ripple	＜50mvPP
Efficiency	92%
Display accuracy	10mV、1mA		10mV、10mA
Output tolerance	Voltage:±2‰＋1digit、Current:±5‰＋2digit
Response time	＜50ms
Product Dimension	12013155mm		15012059mm		18015077mm
Operating Frequency	150KHZ
Applied ambient temperature	-10℃~+45℃
Control Method	Digital Control + LED Display
Package Weight	390g		625g		2200g
Package Dimensions	13111255mm		15012059mm		25521095mm
